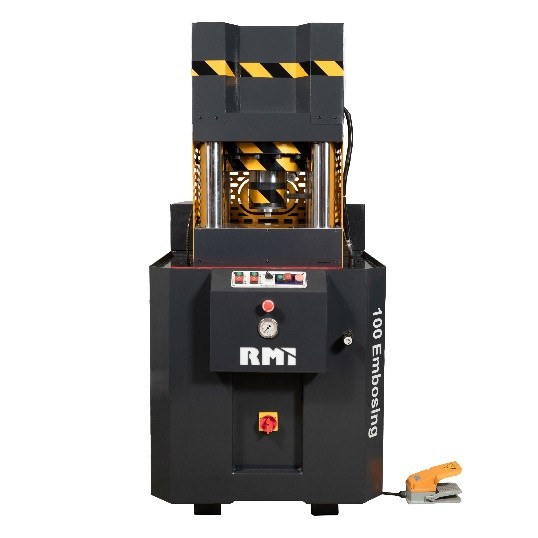

100 Ton Heavy Duty Embossing Machine
The 100 ton heavy duty embossing machine delivers deep, clean impressions on metal sheets with absolute consistency—ideal for large-scale, high-quality production.
Machine Specifications
- 5HP THREE PHASE ELECTRIC MOTOR (420 KV-50/60HZ)
- WORKING TABLE SIZE: L530 MM X W530 MM
- HEAVY DUTY FOUR PILLAR STRUCTURE
- FOOT MOUNTED OPERATING MACHINE
- OIL TANK CAPACITY: 150 LTR (APPROX.)
- 130 MM STROKE
- CE STANDARD ELECTRICAL PANEL
- SAFETY GUARD
- STANDARD ACESSORIES
- WEIGHT: 1300 KG (APPROX.)
- MACHINE DIMENSION: 750 (L) X 1200 (W) X 1880 (H) MM (APPROX.)
- CAPACITY: 200 BAR PRESSURE

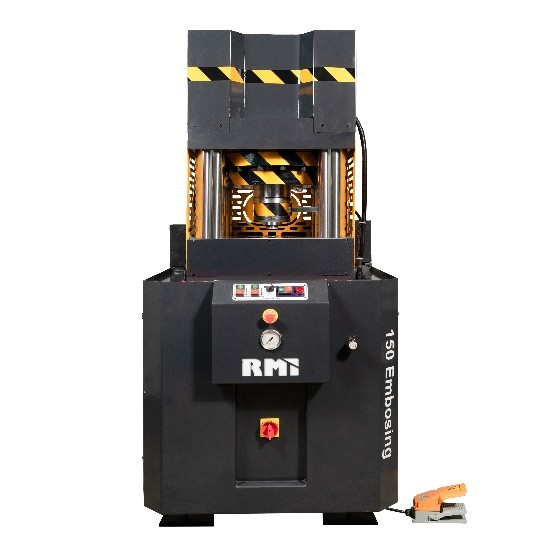

150 TON HEAVY DUTY EMBOSSING MACHINE MANUAL
The 150 ton heavy duty embossing machine manual delivers deep, clean impressions on metal sheets with absolute consistency—ideal for large-scale, high-quality production.
Machine Specifications
- 7.5HP THREE PHASE ELECTRIC MOTOR (420 KV-50/60HZ)
- WORKING TABLE SIZE: L600 MM X W 600 MM
- HEAVY DUTY POWER PACK WITH YUKEN MAKE FITMENTS
- PUMP TYPE: YUKEN VANE PUMP
- OIL TANK CAPACITY: 180 LTR (APPROX.)
- 130 MM STROKE
- HEAVY DUTY PIPE MOUNTED STRUCTURE WITH TENSION REMOVED
- BRANDED ELECTRICAL FITMENTS & FOOT OPERATING SWITCH
- INCLUDED: PRESSURE GAUGE & PROXY SENSOR
- CAPACITY: 200 BAR PRESSURE
- MACHINE DIMENSION: 900 (L) X 1383 (W) X 1840 (H) MM (APPROX.)
- WEIGHT: 1500 KG (APPROX.)

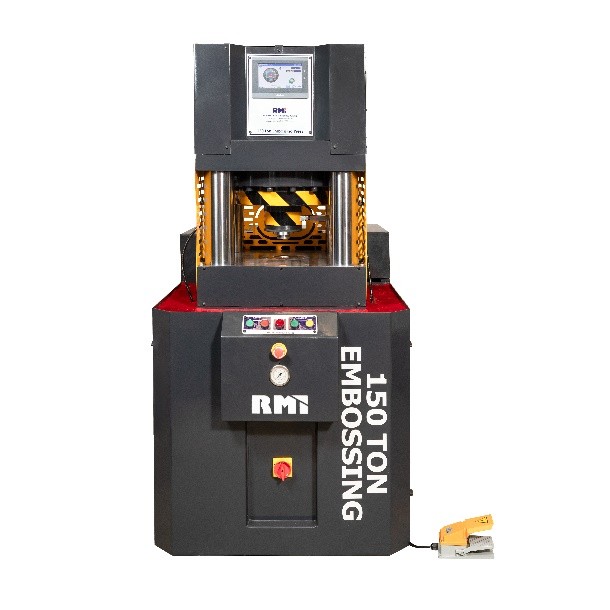

150 TON HEAVY DUTY EMBOSSING MACHINE WITH PLC
The 150 ton heavy duty embossing machine with PLC delivers deep, clean impressions on metal sheets with absolute consistency—ideal for large-scale, high-quality production.
Machine Specifications
- 7.5HP THREE PHASE ELECTRIC MOTOR (420 KV-50/60HZ)
- WORKING TABLE SIZE: L600 MM X W 600 MM
- HEAVY DUTY POWER PACK WITH YUKEN MAKE FITMENTS
- PUMP TYPE: YUKEN VANE PUMP
- OIL TANK CAPACITY: 180 LTR (APPROX.)
- 130 MM STROKE
- HEAVY DUTY PIPE MOUNTED STRUCTURE WITH TENSION REMOVED
- BRANDED ELECTRICAL FITMENTS & FOOT OPERATING SWITCH
- INCLUDED: PRESSURE GAUGE & PROXY SENSOR
- CAPACITY: 200 BAR PRESSURE
- MACHINE DIMENSION: 900 (L) X 1383 (W) X 1840 (H) MM (APPROX.)
- WEIGHT: 1500 KG (APPROX.)
200 TON HEAVY DUTY EMBOSSING MACHINE
The 200 ton heavy duty embossing machine delivers deep, clean impressions on metal sheets with absolute consistency—ideal for large-scale, high-quality production.
Machine Specifications
- 7.5 HP THREE PHASE ELECTRIC MOTOR (420 KV-50/60HZ)
- WORKING TABLE SIZE: L750 MM X W 750 MM (APPROX.)
- HEAVY DUTY POWER PACK WITH YUKEN MAKE FITMENTS
- PUMP TYPE: YUKEN VANE PUMP
- OIL TANK CAPACITY: 210 LTR (APPROX.)
- HEAVY DUTY PIPE MOUNTED STRUCTURE WITH TENSION REMOVED
- BRANDED ELECTRICAL FITMENTS & FOOT OPERATING SWITCH
- 130 MM STROKE
- STANDARD ACCESSORIES
- INCLUDED: PRESSURE GAUGE & PROXY SENSOR
- CAPACITY: 200 BAR PRESSURE
- MACHINE DIMENSION: 1217 (L) X 1577 (W) X 2100 (H) MM (APPROX.)
- WEIGHT: 2500 KG (APPROX.)
