Heat Treatment Furnace
Our Products
Our best annealing furnace machine Products
Ravi Malviya Industries is a trusted leader in manufacturing Annealing Furnaces for softening gold before further processing. Our machines ensure uniform heat treatment, making the gold flexible and preventing cracks during thinning or shaping. With precise time and temperature controls, the process is fully customizable for different production needs. A water flow system protects the furnace environment from external impact, ensuring consistent results. Built for durability and precision, our furnaces are ideal for high-quality and efficient gold processing workflows.
Annealing Furnace Machine
The annealing furnace machine is designed for precision heat treatment, ensuring consistent softness and durability in metal chains. Ideal for gold and silver processing, which enhances the quality and finish of every piece.
Machine Specifications
- 9X12X5 SS CHAMBER
- IN BUILT FIRE PROVISION
- SS TANK PROVISION
- AMMONIA CRACKER UNIT
- 9 KW ELECTRICAL CONSUMPTION
- TEMP. 850'C
- STANDARD CONTROL PANEL
- BRANDED ELECTRICAL FITTINGS
- STANDARD ACCESSORIES
- MACHINE DIMENSION: 1067 (L) X 1880 (W) X 1626 (H) MM
- WEIGHT: 750 KG

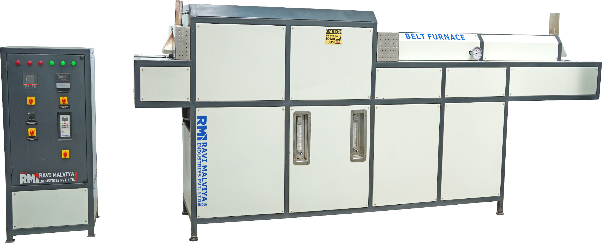

A continuous heat treatment furnace designed with a single heating zone to deliver uniform temperature control and efficient processing for consistent, high-quality production.
Machine Specifications
- VOLTAGE 16.5 KW 415 V 50/60 CYCLE
- WORKING TEMP . 1500 MM
- BELT SIZE : 90 MM X 35 MM
- HEAT ZONE 1500 MM
- AMMONIA CRACKER UNIT
- GAS CONSUMPTION 15-20 LTR PER MINUTE
- PRE HEATING ZONE 500 MM + MAX. HEATING ZONE 1500 MM
- COOLING ZONE : 2000 MM WATER JACKET
- CRACKER 2.5 MM³/HR
- 3.5 KW CRACKER UNIT
- MAX. TEMP. 900 'C & WORKING TEMP. 850 'C
- HEATING ELEMRNT RESISTANCE WIRE
- MACHINE DIMENSION : 900X4000X1500 MM

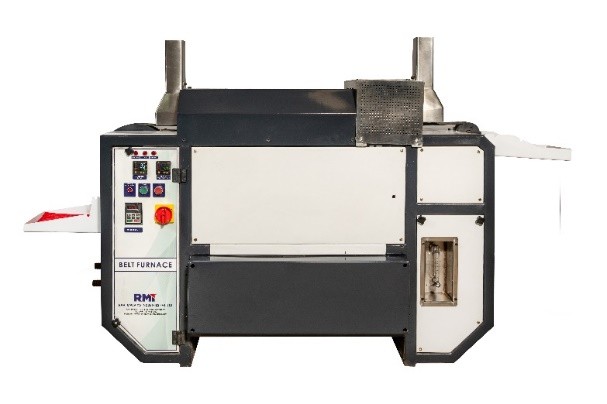

Ravi Malviya Industries Pvt. Ltd. has a high-performance type BELT Furnace of Chain Soldering Machine that is used to provide continuous and uniform heat during soldering of chains and precision components.
This furnace has a belt system that is used to promote the smooth flow of materials and the controlled heating area and uniform quality of soldering. It has been designed to provide high heating performance and efficient insulation that provides energy performance and precise thermal control. The system is ideal in jewelry making and production of industrial chains, as well as increasing productivity, less manual handling and producing strong and reliable joints with low level of oxidation and flaws.
Machine Specifications
- 15 KW 415 VOLTAGE 50/60 HZ
- CEMENTED 300 MM IGBT COIL
- BELT SIZE: 70 MM X 7 FT & IMPORTED (INCONEL SS 0.35 MM)
- COOLING ZONE: 4FT OR 1200 MM
- CRACKER: 2.5 MM/PERHOUR OUTPUT CAS
- CRACKER POWER: 3 KW
- VFD CONTROLLER 1 HP MOTOR FOR BELT SPEED
- HEAVY DUTY FABRICATION FRAMED
- MACHINE WEIGHT: 9.50 KG
